Z790 A ELITE X WIFI 7

Description

DESCRIPTION

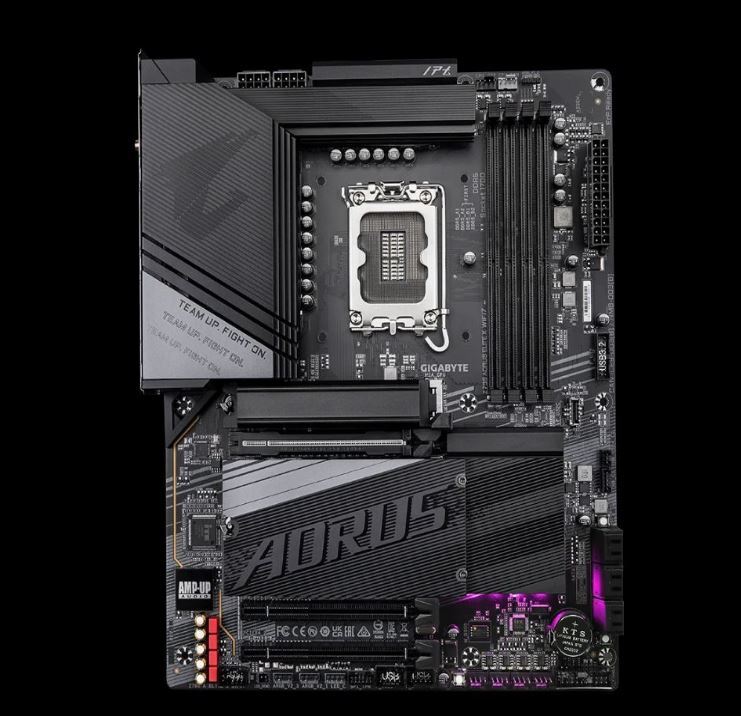

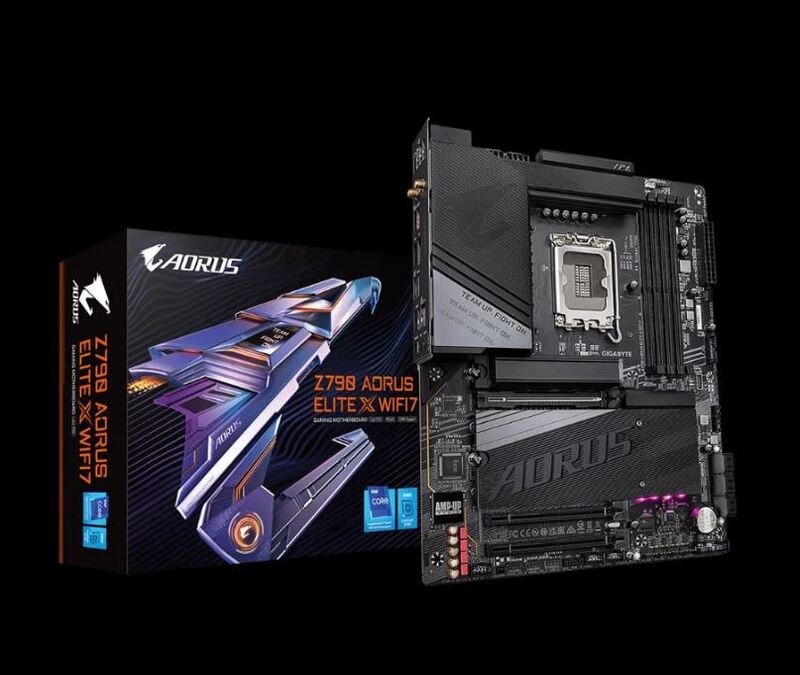

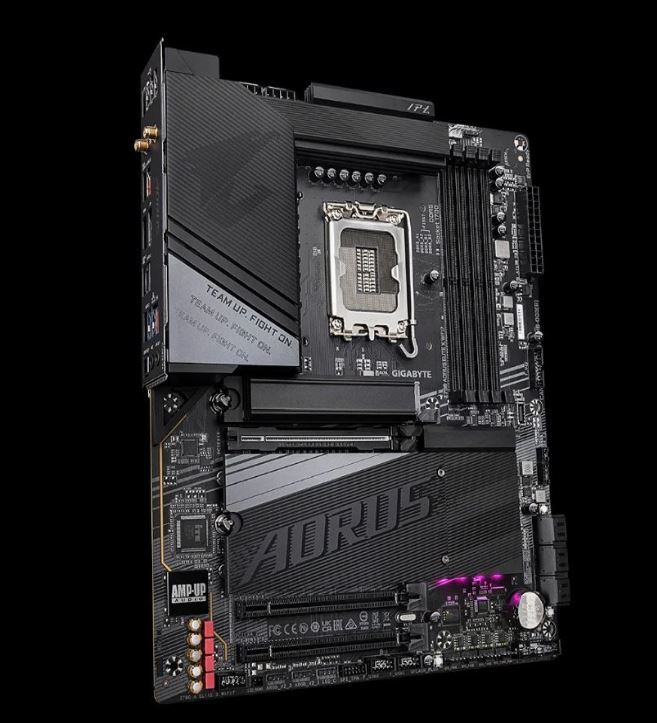

Gigabyte Z790 AORUS ELITE X WIFI 7 Intel LGA 1700 ATX Motherboard, 4x DDR5 ~192GB, 3x PCI-E x16, 4x M.2, 6x SATA, 5x USB 3.2, 1x USB-C,

Key Features

• Supports Intel® Core™ 13th and next-gen processors
• Digital twin 16+1+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

Specification:

• CPU LGA1700 socket: Support for the 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• L3 cache varies with CPU
• Chipset Intel® Z790 Express Chipset
• Memory 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)
• Onboard Graphics-
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
• Expansion Slots
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
• Storage Interface
  • 4 x M.2 connector
  • 6 x SATA 6Gb/s connectors

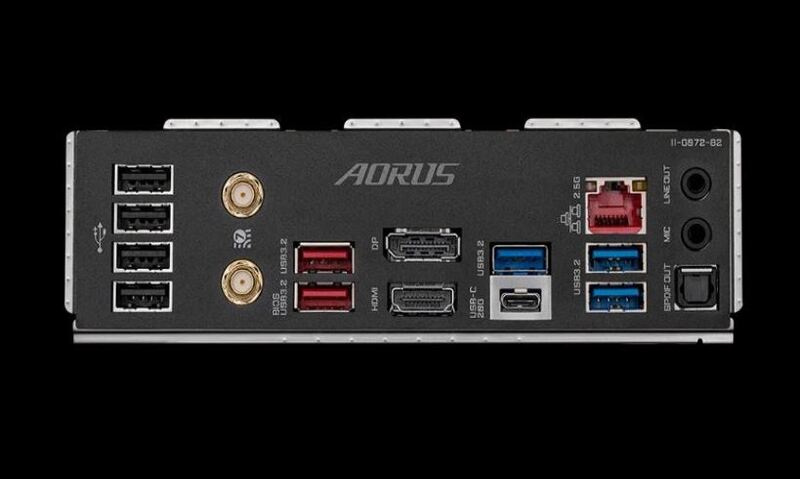

• Back Panel Connectors
  • 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x SMA antenna connectors (2T2R) jk
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jack
• Operating System
  • Support for Windows 11 64-bit
• Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
