USW-FLEX-2.5G-8

Description

DESCRIPTION

Flex 2.5G

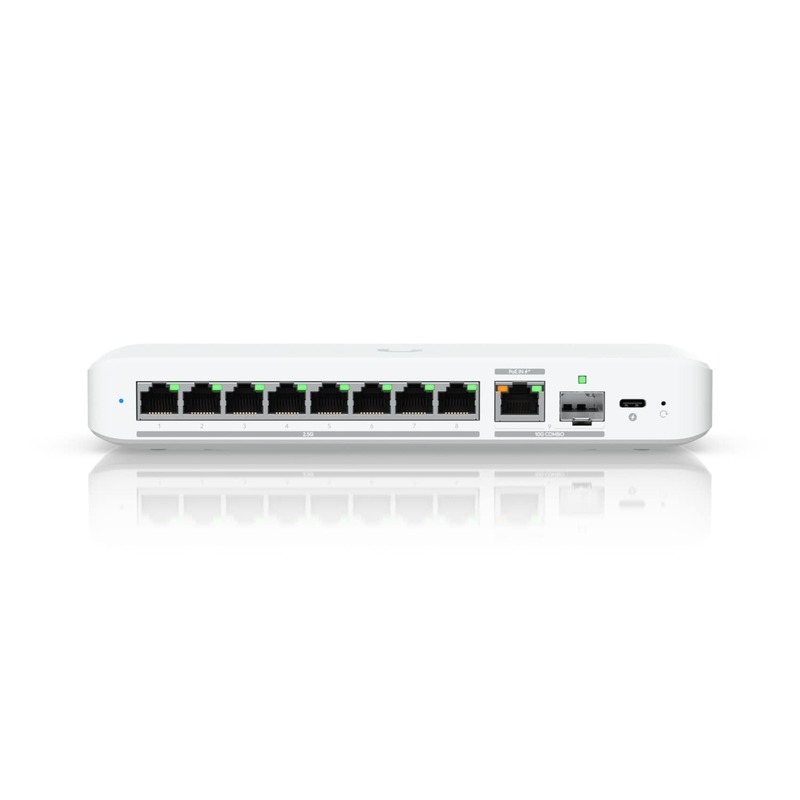

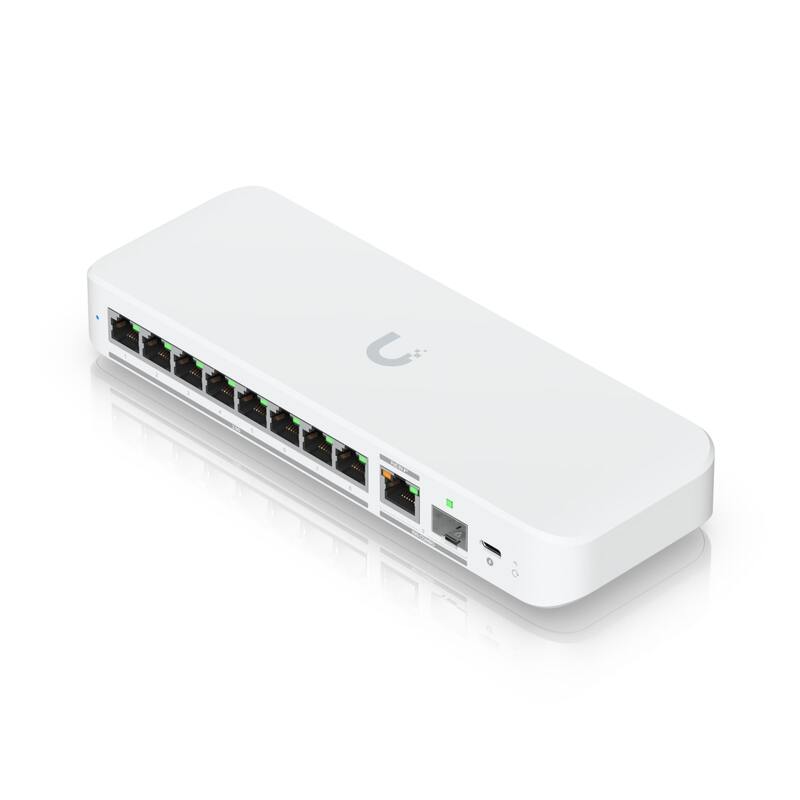

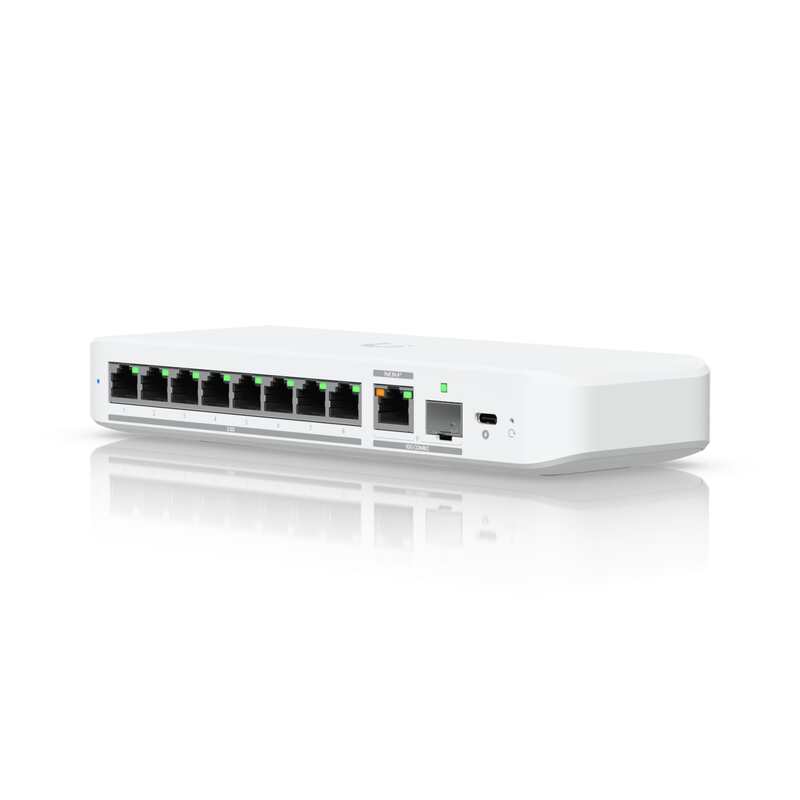

Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.

• (8) 2.5 GbE RJ45
• 2.5 Gbps Downlink Speed
• 10 Gbps Uplink Speed
• AC power or PoE+ input

Compact Versatility

• The Flex 2.5G is a compact, 8-port switch that delivers 2.5 Gigabit Ethernet speeds, enabling faster data transfer for bandwidth-intensive applications. Its small form factor makes it ideal for space-constrained environments, such as home offices or small businesses.

Flexible Power Options: USB-C or PoE+

• Designed for versatility, the switch can be powered either with a USB-C or PoE+ adapter. This dual power capability ensures easy integration into existing network setups without the need for additional power infrastructure.

10 GbE RJ45/SFP+ Combo Port

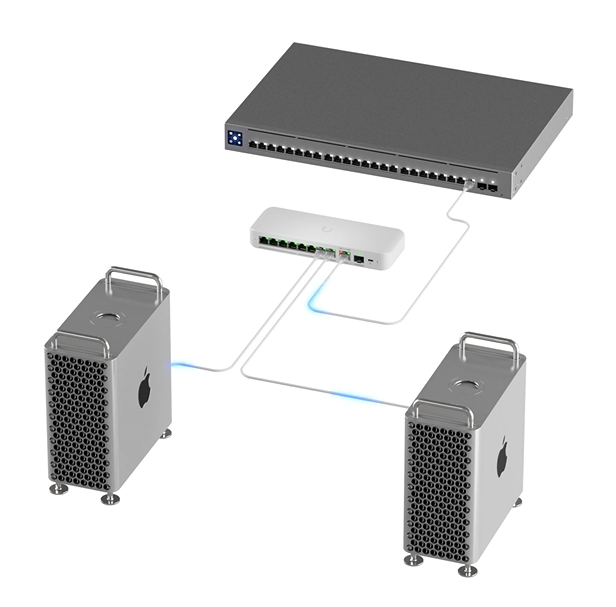

• Equipped with a 10 GbE RJ45/SFP+ combination uplink port, the Flex 2.5G ensures flexible and high-speed connectivity to aggregation switches or core networks.

UniFi Integration

• Seamlessly integrates with the UniFi ecosystem, allowing for simple setup and centralised management through the UniFi Network application. Gain full visibility and control of your switch and connected devices with just a few clicks.

Technical Specs

• Overview
  • Dimensions: 212.9 x 76 x 33.5 mm
  • Port Layout
    • 2.5 GbE RJ45: 8
    • (2.5G/1G/100M/10M)

    • 10 GbE RJ45: 1
    • (10G/5G/2.5G/1G/100M)
      ​
    • 10G SFP+: 1
  • Form Factor

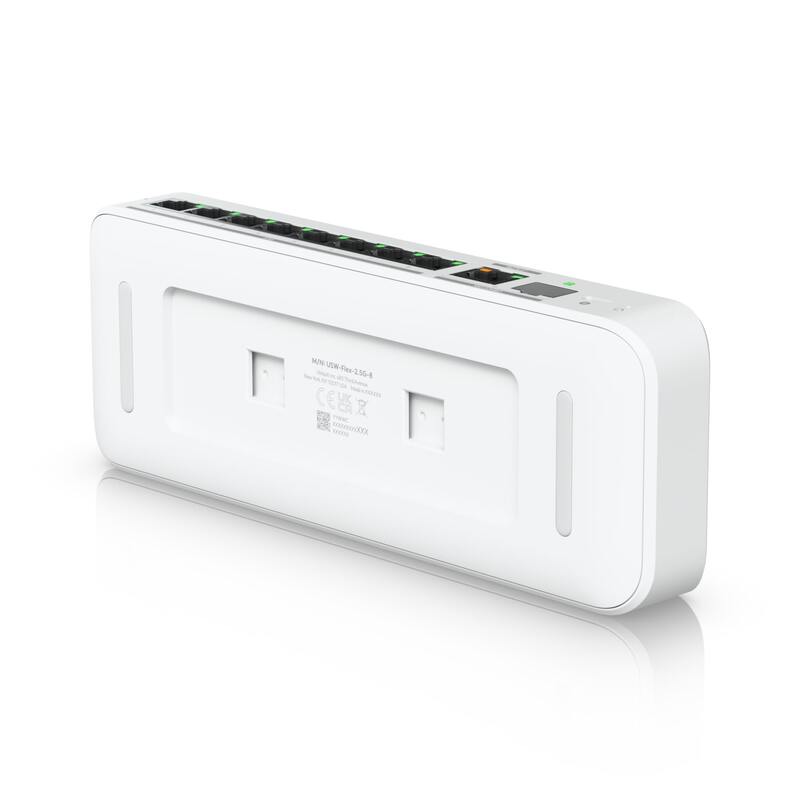

    • Compact Desktop, wall, DIN, magnetic
• Performance
  • Switching Capacity: 60 Gbps
  • Total Non-Blocking Throughput: 30 Gbps
  • Forwarding Rate: 45 Mpps
  • Supported VLANs: 256
  • MAC Address Table Size: 4,000
• Layer 2 Features
  • STP & RSTP: Yes
  • Egress Rate Limit: Yes
  • Flow Control: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • Port Isolation: Yes
  • Port Mirroring: Yes
  • Jumbo Frames: Yes
  • Loop Protection: Yes
• Hardware
  • Max. Power Consumption
    • 14W with PoE input
    • 14W with AC adapter input
  • Power Method
    • (1) USB Type-C, 5V DC, 3A
    • (1) PoE+
  • Power Input Method
    • USB Input
    • PoE
  • Power Supply: AC/DC, external, 15W
  • Supported Voltage Range
    • 4.8–5.2V DC/USB
    • 44V–57V PoE
  • Management: Ethernet
  • Weight: 395 g (0.87 lb)
  • Enclosure Material: Polycarbonate
  • Mount Material: Polycarbonate
  • Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
  • NDAA Compliant: Yes
• Software
  • Application Requirements: UniFi Network: Version 9.0.114 and later
