TL-SG108PE

Description

DESCRIPTION

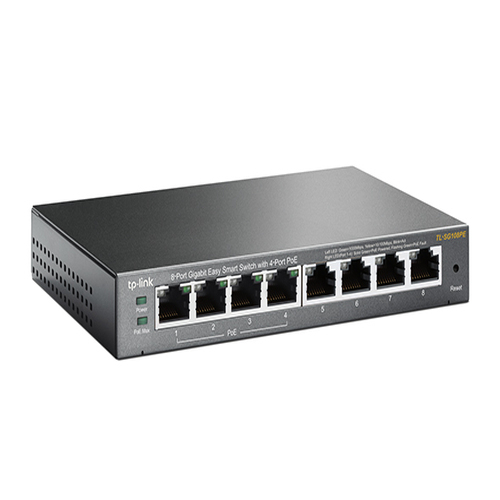

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch

8 10/100/1000Mbps RJ45 ports

• With 4 PoE ports, data and power can be transferred on one single cable
• Provides network monitoring, traffic prioritization and VLAN features
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration

What This Product Does

• The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch.
• It is designed specically for small businesses that require simple network management and PoE function.
• The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones.
• Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS.
• Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.

HARDWARE FEATURES

• Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
• IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface 8 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity Fanless
• Power Supply External Power Adapter(Output: 48VDC / 1.25A)
• Power Consumption Maximum (PoE on): 65.2W (220V/50Hz)
• Maximum (PoE off): 5.2W (220V/50Hz)
• PoE+ Ports(RJ45) Standard: 802.3 af compliant
• PoE Ports: Port 1- Port 4
• PoE Power Budget: 55W

PERFORMANCE

• Switching Capacity 16Gbps
• Packet Forwarding Rate 11.9Mpps
• MAC Address Table 4K
• Packet Buffer Memory 1.5Mb
