Description
DESCRIPTION

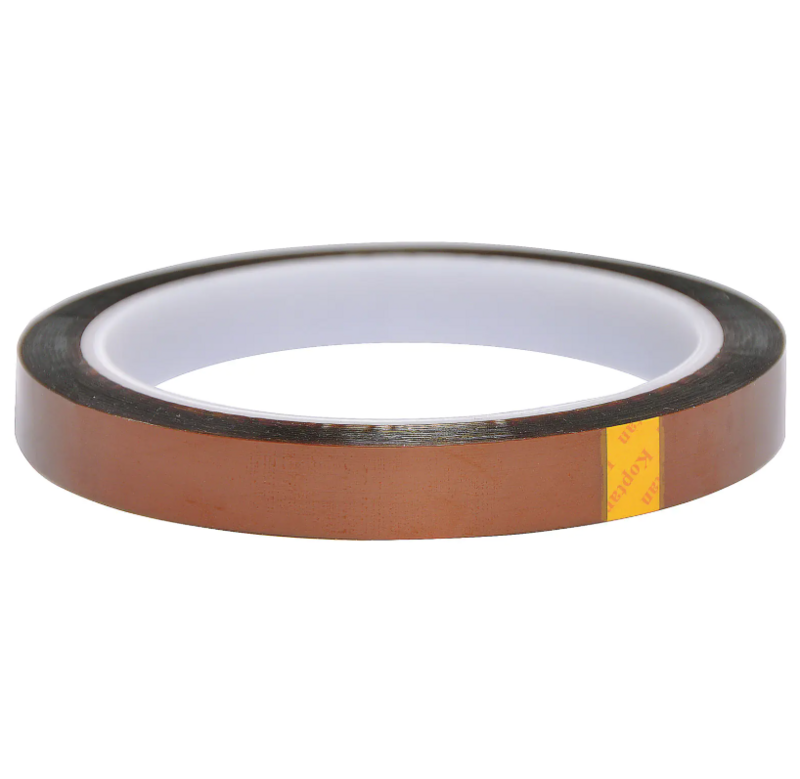

These 33m rolls of 12mm wide, high temperature polyimide tape offer high heat resistance and excellent dielectric strength. The tape removes cleanly without leaving a residue, making it ideal for use in electrical insulation or masking circuit boards during wave soldering.
Typical Applications:
- Magnet wire and cable
- Slot liner insulation
- lnter-layer insulation in motors and transformers
- Flexible PCBs
- Solder masking
- 3D printing
Specifications:
- Total Thickness: 60±2µm
- Backing Thickness: 25µm
- Initial Tack: 25±2
- Adhesion to Steel: 6.5±1
- Holding Power: =72hrs
- Tensile Strength: 90
- Elongation at Break: 70%
- Max Temperature resistance: 260*C
- Tape Structure: Silicon adhesive Pi film
