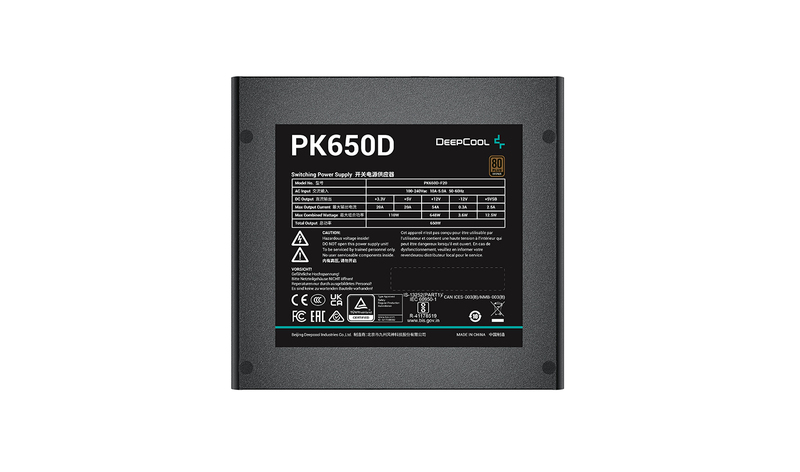

R-PK650D-FA0B-AU

Description

DESCRIPTION

DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.

BEAUTIFUL IN BRONZE

• The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.

DC-DC CONVERSION

• A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.

TOUGH AND DURABLE

• Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.

ERP LOT 6 COMPLIANT

• Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.

Technical Spec

• Type ATX12V V2.4
• Product Dimensions 150×140×86mm (W x L x H)
• 80PLUS Certifications Bronze
• Fan Size 120mm
• Fan Bearing Hypro Bearing
• Topology Active PFC+DC to DC
• Capacitors Taiwan capacitor
• Power Good Signal 100-150ms
• Hold Up Time ≥16ms (80% Load)
• Efficiency ≥85% Under Typical Load(50% Loading)
• Protection SCP,OPP,OTP,OVP,OCP,UVP
• Operation Temperature 0 – 40 °C
• Regulatory CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS
• Erp Regulation ErP 2013
• MTBF 100,000 Hours
