DESCRIPTION

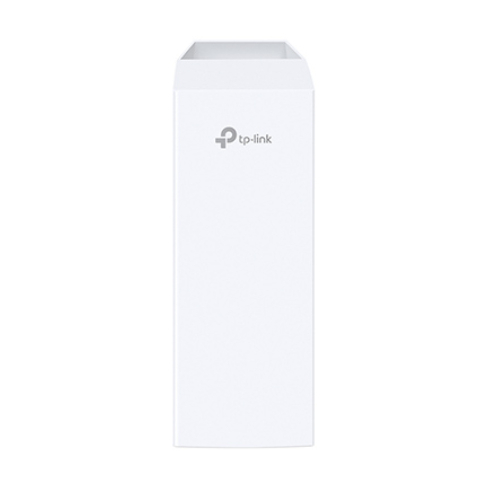

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point
Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 27dBm/500mw
System-level optimizations for more than 5km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
HARDWARE FEATURES
- Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
- Memory 64MB DDR2 RAM, 8MB Flash
- Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
- 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
- 1 Grounding Terminal
- 1 Reset Button
- Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
- Voltage range: 16-27VDC
- Power Consumption 10.5 Watts Max
- Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
- Dimensions ( W x D x H ) 224 x 79 x 60 mm
- Antenna Type Built-in 9dBi 2×2 Dual-polarized Directional Antenna
- Beam Width: 65° (H-Plane) / 35° (E-Plane)
- Note: For more details, please refer to datasheet
- Protection 15KV ESD Protection
- 6KV Lightning Protection
- Enclosure Outdoor ASA stabilized plastic material
- IPX5 waterproof Certification
WIRELESS FEATURES
- Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
- Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.2Mbps (10MHz,Dynamic)
- Up to 36.1Mbps (5MHz,Dynamic)
- Frequency 2.4~2.483GHz
- Note: Available operating frequency may vary depending on the limitation
