BX8071512700F

Description

DESCRIPTION

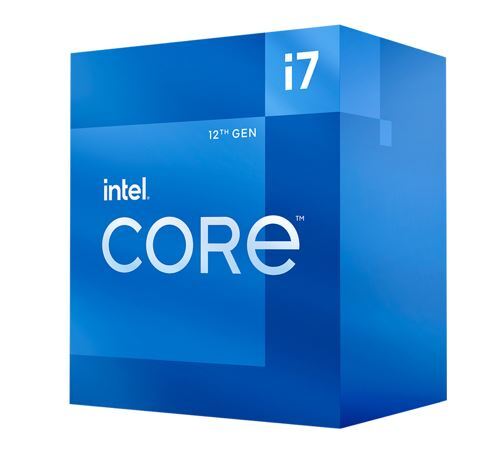

Intel i7-12700F CPU 3.6GHz (4.9GHz Turbo) 12th Gen LGA1700 12-Cores 20-Threads 25MB 65W Graphic Card Required Retail Box Alder Lake

Essentials

• Product Collection 12th Generation Intel® Core™ i7 Processors
• Code Name Products formerly Alder Lake
• Vertical Segment Desktop
• Processor Number i7-12700F
• Status Launched
• Launch Date Q1'22
• Lithography Intel 7
• Use Conditions PC/Client/Tablet

CPU Specifications

• Total Cores 12
• # of Performance-cores 8
• # of Efficient-cores 4
• Total Threads 20
• Max Turbo Frequency 4.90 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 4.90 GHz
• Performance-core Max Turbo Frequency 4.80 GHz
• Efficient-core Max Turbo Frequency 3.60 GHz
• Performance-core Base Frequency 2.10 GHz
• Efficient-core Base Frequency 1.60 GHz
• Cache 25 MB Intel® Smart Cache
• Total L2 Cache 12 MB
• Processor Base Power 65 W
• Maximum Turbo Power 180 W

Supplemental Information

• Embedded Options Available No

Memory Specifications

• Max Memory Size (dependent on memory type) 128 GB
• Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
• Max # of Memory Channels 2
• Max Memory Bandwidth 76.8 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision 4
• Max # of DMI Lanes 8
• Scalability 1S Only
• PCI Express Revision 5.0 and 4.0
• PCI Express Configurations ‡ Up to 1×16+4 | 2×8+4
• Max # of PCI Express Lanes 20

Package Specifications

• Max CPU Configuration 1
• Thermal Solution Specification PCG 2020C
• TJUNCTION 100°C
• Package Size 45.0 mm x 37.5 mm
